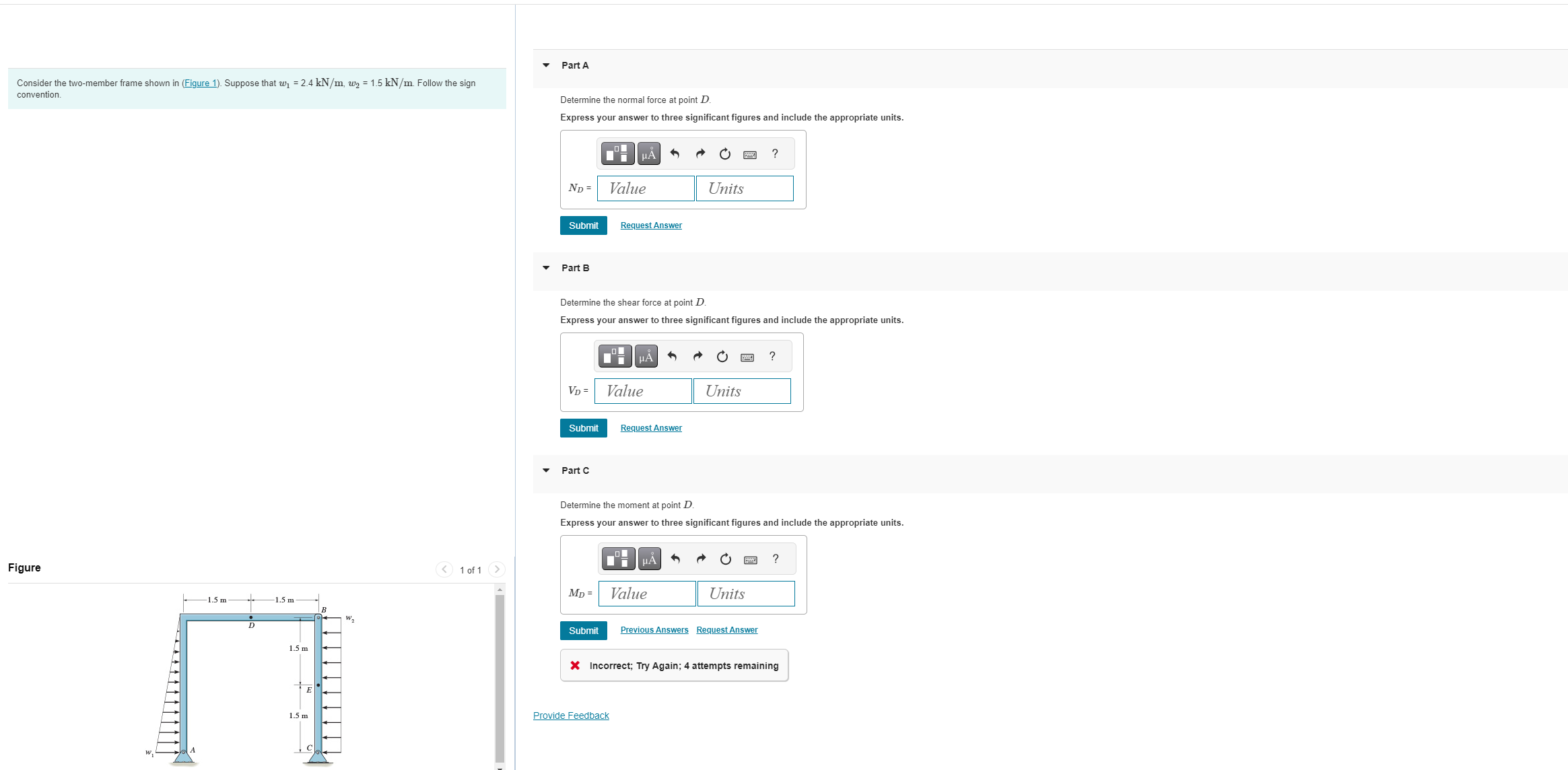

Question: Consider the two-member frame shown in (Figure 1). Suppose that \( w_{1}=2.4 \mathrm{kN} / \mathrm{m}, w_{2}=1.5 \mathrm{kN} / \mathrm{m} \). Follow the sign conventionPart ADetermine the normal force at point \( D \).Express your answer to three significant figures and include the appropriate unitsPart BDetermine the shear force at point \( D

Consider the two$-$member frame shown in $($Figure $1).$ Suppose that $\backslash ($ w$\_\{1\}=2\mathrm{.}4\backslash$mathrm$\{$kN$\}/\backslash$mathrm$\{$m$\},$ w$\_\{2\}=1\mathrm{.}5\backslash$mathrm$\{$kN$\}/\backslash$mathrm$\{$m$\}\backslash ).$ Follow the sign convention

Part A

Determine the normal force at point $\backslash ($ D $\backslash ).$

Express your answer to three significant figures and include the appropriate units

Part B

Determine the shear force at point $\backslash ($ D $\backslash ).$

Express your answer to three significant figures and include the appropriate units.

Part C

Determine the moment at point $\backslash ($ D $\backslash ).$

Express your answer to three significant figures and include the appropriate units.

Previous Answers Request Answer

Incorrect; Try Again; $4$ attempts remaining
